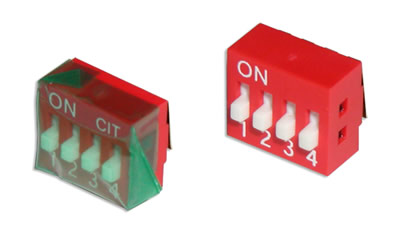

KR Series Right Angle DIP Switch
分类: 拨码开关.DIP开关
发布时间: 2016-07-13 14:27
KR Series Right Angle DIP Switch
| Classifications | Through-Hole | |
Number Of Poles
DPST~12PST
Latching Option
Multiple
Actuator Styles
Extended, Recessed
Terminal Options
Right Angle
Electrical Ratings
Switch: 25mA@24VDC; Carry: 100mA@24VDC
Electrical Life
2,000 cycles
Contact Resistance
<= 25mOhm initial
Actuation Force
800gF maximum
Actuation Travel
2.0mm
Dielectric Strength Contact To Contact
500V rms
Insulation Resistance
> 100MOhm min
Operating Temperature
-40C to 80C
Storage Temperature
-40C to 80C
Actuator Materials
White Polybutylene Terephthalate (PBT) UL94V-0
Cover Material
Red Polybutylene Terephthalate (PBT) UL94V-0
Housing Materials
Black Polybutylene Terephthalate (PBT) UL94V-0
Contacts Materials
Gold over Nickel Plated Phosphor Bronzze
Terminals Materials
Gold over Nickel Plated Phosphor Bronzze
Tape Seal Option
No Tape Seal, Tape Seal
Packaging Options
Tube

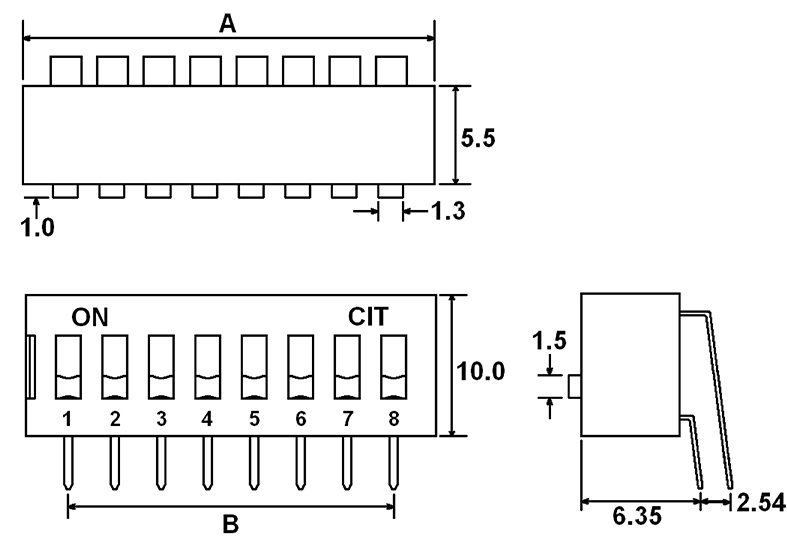

Dimensional Drawing
