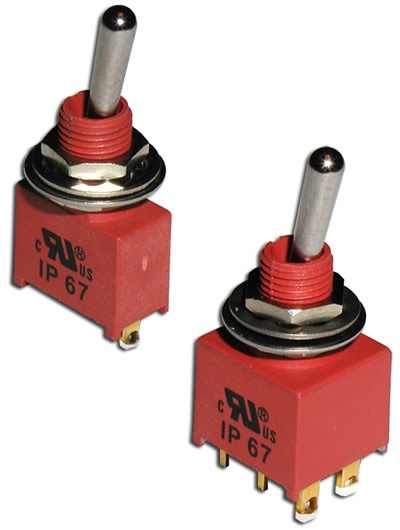

AST Series Toggle Switch

分类: 发布时间: 2016-07-13 14:46

AST Series Toggle Switch

Classifications

Right Angle Panel Mount, Through-Hole Sealed

Number Of Poles

SPDT, DPDT, 3PDT

Latching Option

Multiple

Terminal Options

Solder Lug, PC Pin, Quick Connect, Horizontal Mount Right Angle PC Pin or Snap-In, Vertical Mount Right Angle PC Pin or Snap-In, PC Pin with Support Bracket or Snap-In Support Bracket

Switch Function

On-None-On, On-None-(On), On-Off-On, (On)-Off-(On), On-Off-(On), On-On-On

Electrical Ratings

5A@120VAC, 5A@28VDC, 2A@250VAC

Sealing Degree

Process Sealed

Electrical Life

30,000 cycles

Contact Resistance

<= 20mOhm initial

Dielectric Strength Contact To Contact

1500V rms

Insulation Resistance

> 100MOhm min

Operating Temperature

-40C to 85C

Storage Temperature

-40C to 85C

Actuator Materials

Chrome Plated Brass

Housing Materials

4/6 Nylon Glass Filled UL94V-0

Contacts Materials

Silver Plated Copper Alloy

Terminals Materials

Silver Plated Copper Alloy

Support Bracket Material

Tin Plated Brass

Bushing Options

8.89mm Threaded, 6.10mm Non-Threaded

Actuator Lengths

7.62mm, 12.7mm, 7.62mm Anti-Static Plastic, 12.7mm Anti-Static Plastic
