AHU Series Pushbutton Switch
分类: PUHS SWITCH
发布时间: 2016-07-13 16:44
AHU Series Pushbutton Switch
| Classifications | Illuminated Panel Mount Sealed Anti-Vandal | |
Number Of Poles
SPDT, DPDT
Body Diameter
19mm
Latching Option
Momentary, Latching
Actuator Styles
Flush Non-Illuminated, Flush Ring Illuminated, Flush Dot Illuminated, Flush Universal Standby Symbol Illuminated
Switch Finish
Stainless Steel, Black Anodized Aluminum
Terminal Options
Solder Lugs
1st Led
Red, Yellow, Green, Blue, White
Led Voltage
6VDC, 12VDC, 24VDC, 110VAC, 220VAC
Electrical Ratings
3A@125VAC, 3A@250VAC
Sealing Degree
IP65, Process Sealed
Electrical Life
50,000 cycles
Contact Resistance
<= 50mOhm initial
Actuation Force
200 +/- 50gF, 250 +/- 50gF
Actuation Travel
3.2 +/- .25mm
Dielectric Strength Contact To Contact
2000V rms
Dielectric Strength Contact To Led
2000V rms
Insulation Resistance
> 100MOhm min
Operating Temperature
-20C to 55C
Storage Temperature
-20C to 55C
Actuator Materials
Stainless Steel, Black Anodized Aluminum
Body Material
Threaded, Stainless Steel, Black Anodized Aluminum
Led Lens Material
Polycarbonate (PC)
Terminal Support Material
Polybutylene Terephthalate (PBT)
Inner Switch Body Material
Polycarbonate (PC)
Contacts Materials
Silver Alloy
Terminals Materials
Tin Plated Brass Epoxy Sealed
Hardware
One Hex Nut & One O Ring supplied
.jpg)

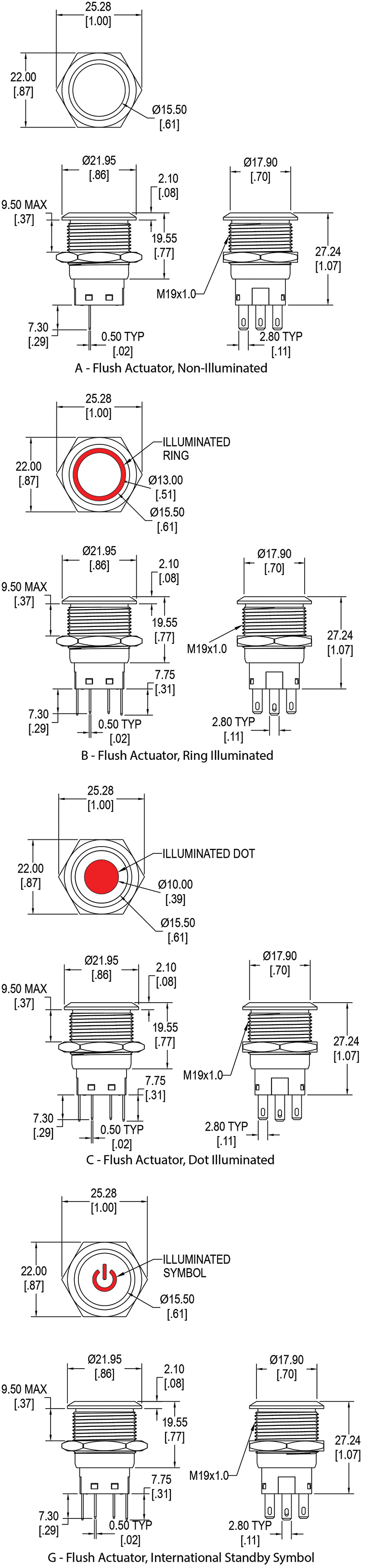

Dimensional Drawing
