AH Series Pushbutton Switch
分类: PUHS SWITCH
发布时间: 2016-07-13 16:46

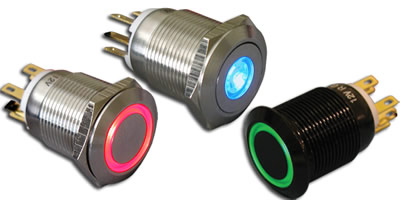

AH Series Pushbutton Switch
| Classifications | Illuminated Panel Mount Sealed Anti-Vandal | |
Number Of Poles
SPST NO, SPST NC
Body Diameter
19mm
Latching Option
Momentary
Actuator Styles
Flush Non-Illuminated, Flush Ring Illuminated, Flush Dot Illuminated, Flush Universal Standby Symbol Illuminated
Switch Finish
Stainless Steel, Black Anodized Aluminum
Terminal Options
Solder Lugs
1st Led
Red, Yellow, Green, Blue, White, Orange
2nd Led
Red, Yellow, Green, Blue, White, Orange
Led Voltage
6VDC, 12VDC, 24VDC, 110VAC, 220VAC
Electrical Ratings
1A@24VDC, 1A@125VAC, 0.5A@250VAC
Sealing Degree
IP65, Process Sealed
Electrical Life
50,000 cycles
Contact Resistance
<= 50mOhm initial
Actuation Force
550 +/- 50gF
Actuation Travel
2.5 +/- .3mm
Dielectric Strength Contact To Contact
2000V rms
Dielectric Strength Contact To Led
2000V rms
Insulation Resistance
> 100MOhm min
Operating Temperature
-25C to 70C
Storage Temperature
-25C to 70C
Actuator Materials
Stainless Steel, Black Anodized Aluminum
Body Material
Threaded, Stainless Steel, Black Anodized Aluminum
Led Lens Material
Polycarbonate (PC)
Terminal Support Material
Polybutylene Terephthalate (PBT)
Inner Switch Body Material
Polycarbonate (PC)
Contacts Materials
Silver Alloy
Terminals Materials
Tin Plated Brass Epoxy Sealed
Hardware
One Hex Nut & One O Ring supplied

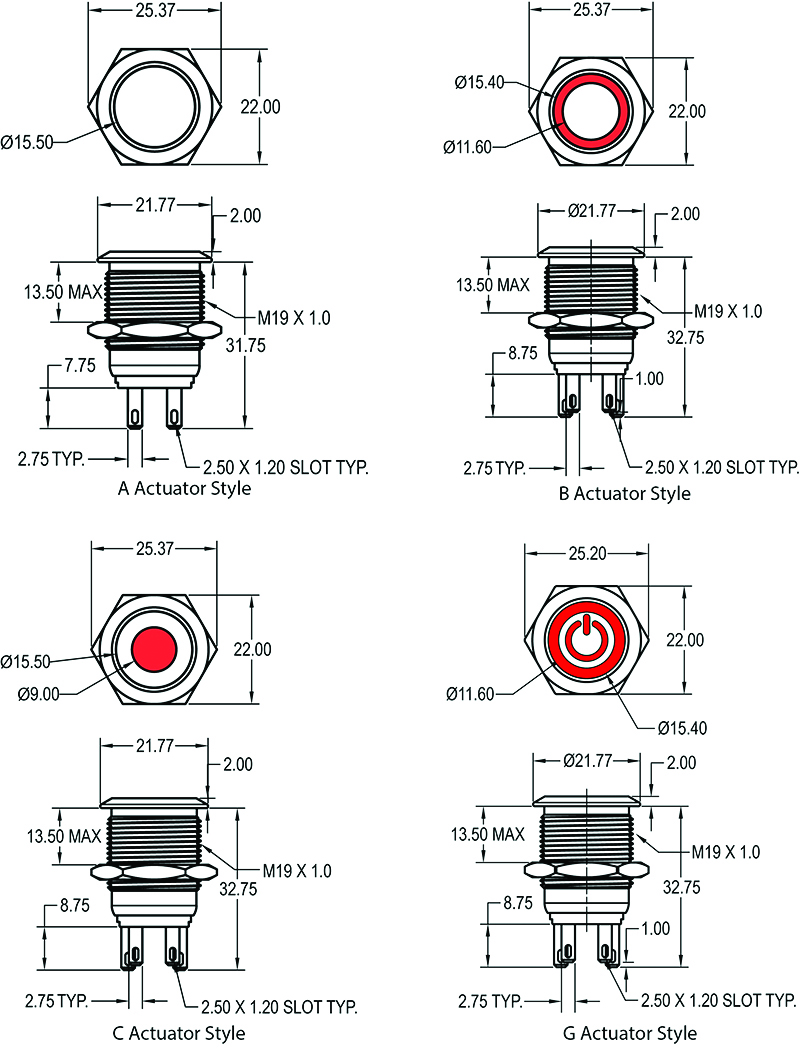

Dimensional Drawing
.jpg)
