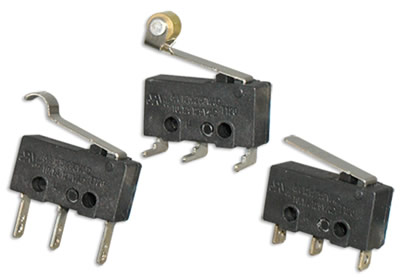

SM3 Series Snap-Action Switch
分类: 微动开关
发布时间: 2016-07-13 17:00
SM3 Series Snap-Action Switch
| Classifications | Panel Mount, Through-Hole Micro | |
Number Of Poles
SPST NO, SPST NC, SPDT
Latching Option
Multiple
Actuator Styles
Pin Plunger, Standard Hinge Lever, Simulated Roller, Short Roller Lever, Long Hinge Lever
Terminal Options
.110 Quick Connect, Solder Lug, PC Pin, Right Angle PC Pin, Left Angle PC Pin
Electrical Ratings
5A@125VAC, 5A@250VAC, 5A@T120
Electrical Life
100,000 cycles
Mechanical Life
10,000,000 cycles
Contact Resistance
<= 20mOhm initial
Actuation Force
80gF, 130gF, 350gF
Dielectric Strength Contact To Contact
1000V rms
Insulation Resistance
> 100MOhm min
Operating Temperature
-40C to 120C
Storage Temperature
-40C to 120C
Body Material
Polybutylene Terephthalate (PBT) UL94-V0
Pin Plunger Material
Polybutylene Terephthalate (PBT) UL94-V0
Contacts Materials
Silver Alloy
Terminals Materials
Silver Plated Copper Alloy

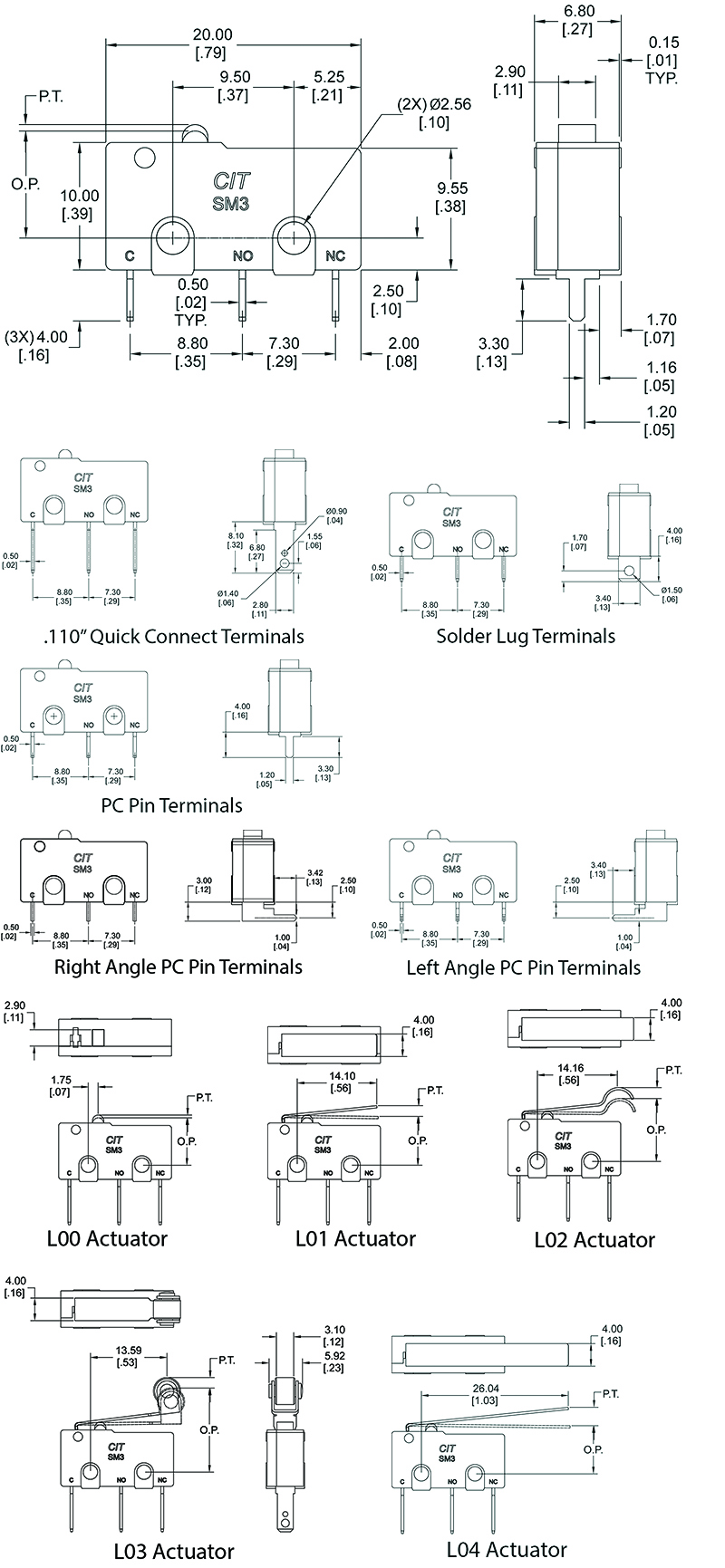

Dimensional Drawing

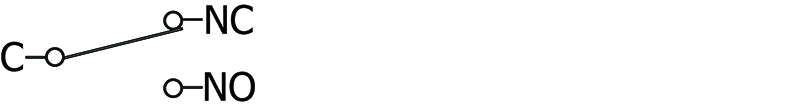

Schematic
