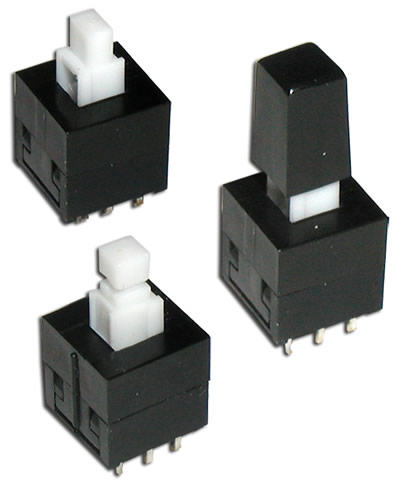

LP2203 Series Pushbutton Switch
分类: 按键开关
发布时间: 2016-07-13 17:21
LP2203 Series Pushbutton Switch
| Classifications | Through-Hole Miniature | |
Number Of Poles
DPDT
Latching Option
Momentary, Latching
Terminal Options
PC Pin
Electrical Ratings
100mA@30VDC
Electrical Life
100,000 cycles
Contact Resistance
<= 50mOhm initial
Actuation Force
180 +/- 50gF
Actuation Travel
1.5mm to lock, 2.5mm to full travel
Dielectric Strength Contact To Contact
1000V rms
Insulation Resistance
> 100MOhm min
Operating Temperature
-40C to 85C
Storage Temperature
-40C to 85C
Actuator Materials
Acetal Polyoxymethylene (POM)
Housing Materials
Polybutylene Terephthalate (PBT)
Contacts Materials
Silver Plated Phosphor Bronze
Terminals Materials
Silver Plated Brass
Cover Material2
Acetal Polyoxymethylene (POM)
Spring Material2
Stainless Steel
Latching Pin Material
Stainless Steel
Cap Styles
C01, C02, C03, C04, C05, C11, C12, C13, C15, C16, C18, C19, C22, C26, C27, C28
Cap Colors
Contact Factory

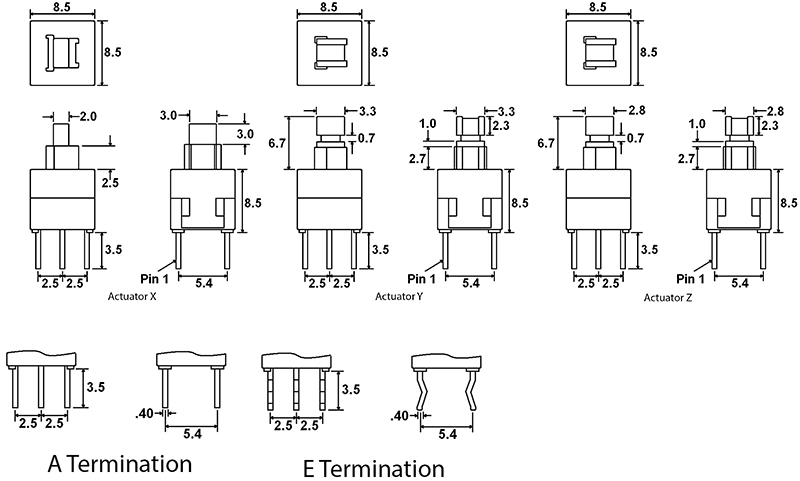

Dimensional Drawing
