BT Series Pushbutton Switch
分类: 带灯轻触开关
发布时间: 2016-07-13 17:40
BT Series Pushbutton Switch
| Classifications | Illuminated Through-Hole Miniature | |
Number Of Poles
DPDT
Latching Option
Momentary, Latching
Terminal Options
PC Pin
1st Led
Red, Yellow, Green, Pure Green, Blue, White, Red/Yellow, Red/Green, Red/Blue, Yellow/Green, Yellow/Blue, Green/Blue
Electrical Ratings
100mA@30VDC
Electrical Life
10,000 cycles
Contact Resistance
<= 50mOhm initial
Actuation Force
250 +/- 100gF
Actuation Travel
Total Travel: 2.5mm; Travel to Lock: 1.0mm
Dielectric Strength Contact To Contact
500V rms
Insulation Resistance
> 100MOhm min
Operating Temperature
-40C to 85C
Storage Temperature
-40C to 85C
Actuator Materials
6/6 Nylon
Contacts Materials
Silver Plated Phosphor Bronze
Terminals Materials
Silver Plated Brass
Frame Material
6/6 Nylon
Cover Material2
6/6 Nylon
Base Material
6T Nylon
Cap Material
Polycarbonate (PC), Polybutylene Terephthalate (PBT)
Frame Styles
No Frame, R1 Round Frame, R2, Round Frame, S1 Square Frame, S2 Square Frame
Frame Color
Black
Cap Styles
No cap, A, B, C, D, E, F, G, H
Cap Colors
White Semi-Transparent, White Transparent, White Opaque, Black Opaque, Red Semi-Transparent, Red Transparent, Yellow Semi-Transparent, Yellow Transparent, Green Semi-Transparent, Green Transparent, Blue Semi-Transparent, Blue Transparent, Clear Semi-Transp
Laser Etching Styles
A, B, C, D, E, F, G, H, I, J

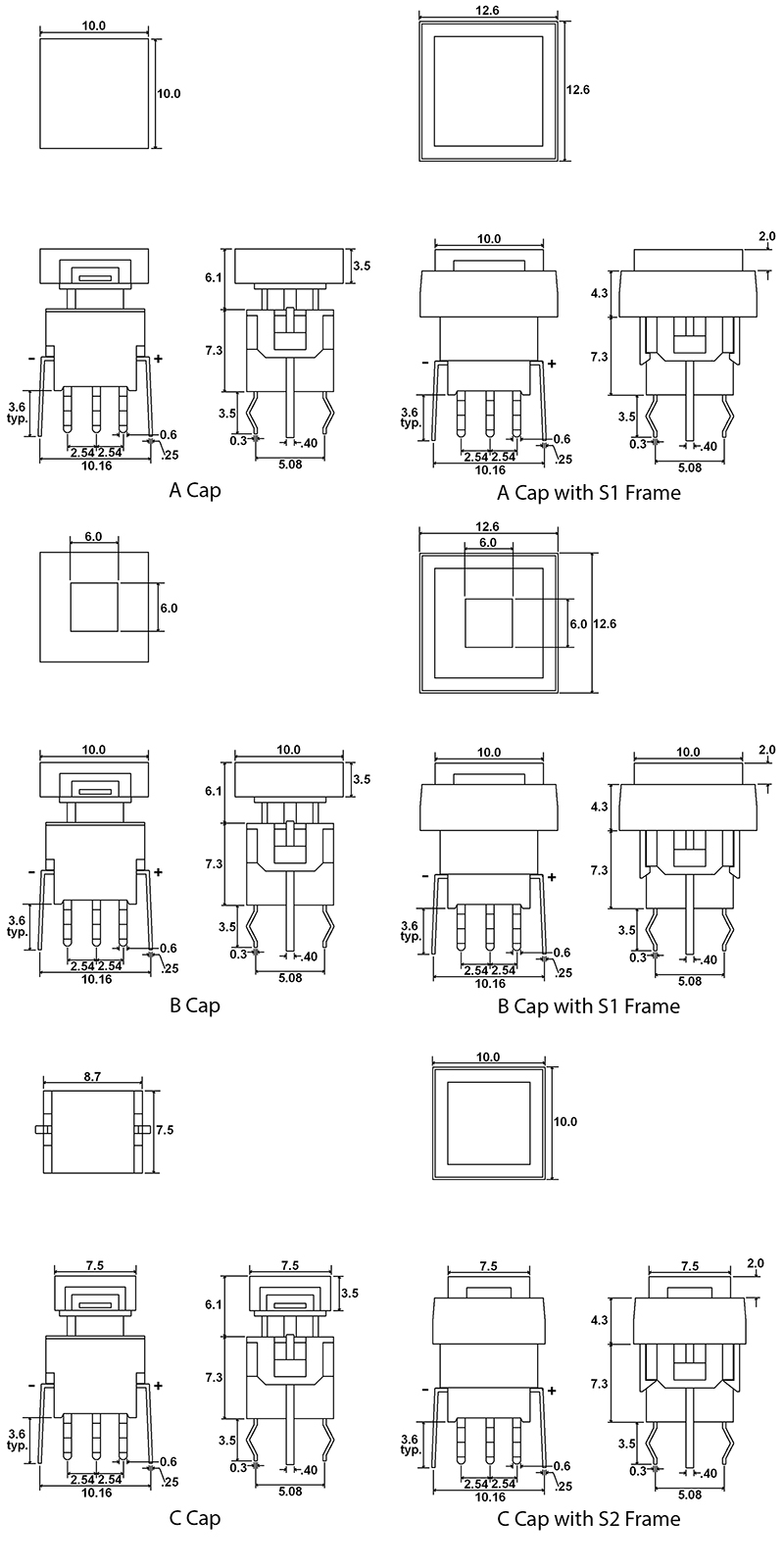

Dimensional Drawing
