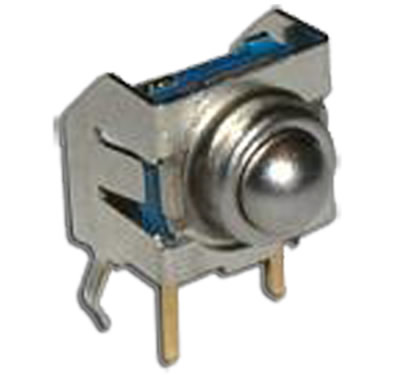

STJV Series Tactile Switch
分类: 轻触开关
发布时间: 2016-07-13 17:59
STJV Series Tactile Switch
| Classifications | Right Angle Through-Hole Sealed | |
Number Of Poles
SPST
Latching Option
Momentary
Terminal Options
Right Angle Multi-Directional Actuator Process Sealed Through-Hole
Electrical Ratings
50mA@48VDC
Sealing Degree
IP67, Process Sealed
Electrical Life
100,000 cycles
Contact Resistance
<= 50mOhm initial
Actuation Force
130 +/- 50gF, 200 +/- 50gF, 300 +/- 50gF, 500 +/- 50gF
Actuation Travel
1.6 +/- .25mm
Dielectric Strength Contact To Contact
500V rms
Insulation Resistance
> 100MOhm min
Operating Temperature
-40C to 85C
Storage Temperature
-40C to 85C
Actuator Materials
Stainless Steel
Cover Material
Stainless Steel
Housing Materials
6/6 Nylon
Contacts Materials
Silver Plated Stainless Steel
Terminals Materials
Silver Plated Brass
Support Bracket Material
Tin Plated Steel

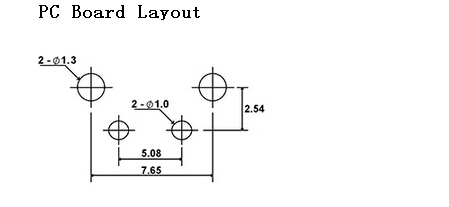

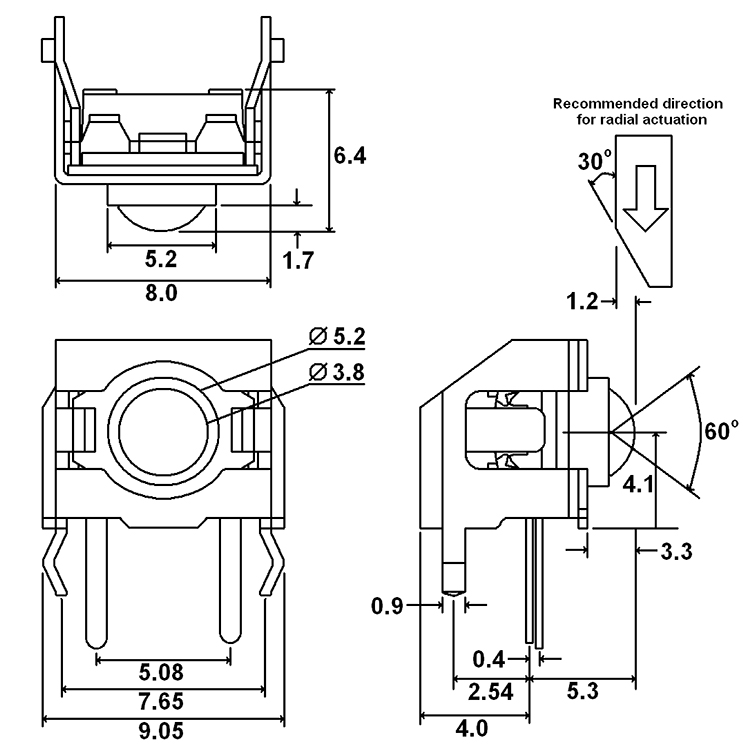

Dimensional Drawing
