CT1102 Series Tactile Switch
分类: 轻触开关
发布时间: 2016-07-13 18:08

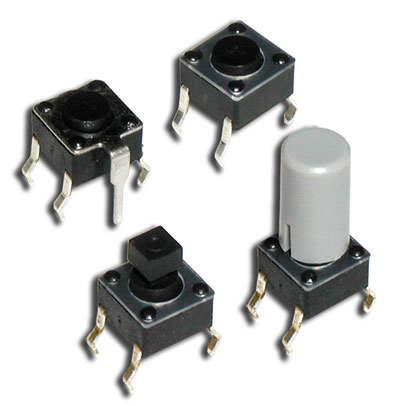

CT1102 Series Tactile Switch
| Classifications | Through-Hole | |
Number Of Poles
SPST
Latching Option
Momentary
Terminal Options
Through-Hole, Through-Hole with Grounding Pin
Electrical Ratings
50mA@50VDC
Electrical Life
100,000 cycles
Contact Resistance
<= 50mOhm initial
Actuation Force
100 +/- 50gF, 160 +/- 50gF, 260 +/- 50gF
Actuation Travel
0.25 +/- .1mm
Dielectric Strength Contact To Contact
250V rms
Insulation Resistance
> 100MOhm min
Operating Temperature
-40C to 85C
Storage Temperature
-40C to 85C
Actuator Materials
6/6 Nylon
Cover Material
Polyester
Housing Materials
6/6 Nylon
Contacts Materials
Silver Plated Phosphor Bronze
Terminals Materials
Silver Plated Brass
Actuator Lengths
4.3mm, 5.0mm, 7.0mm, 7.5mm, 8.0mm, 9.5mm, 11.0mm, 12.0mm, 13.0mm, 14.5mm, 15.0mm, 17.0mm, 2.4mm square head, 2.8mm square head
Cap Styles
C01, C02, C03, C04, C05
Cap Colors
Contact Factory

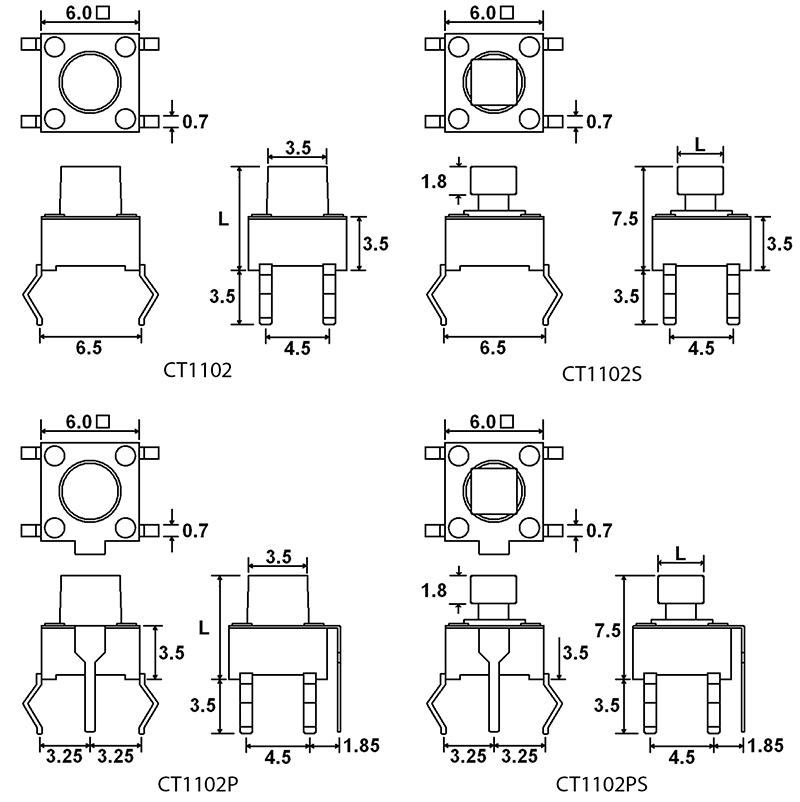

Dimensional Drawing
