针座连接器0.6间距技术指标:
额定电流: 0.5AMP AC/DC
额定电压: 30V AC/DC
接触电阻: 20mΩ Max
耐电压: 200V AC/Minute
绝缘电阻: 100mΩ Min
工作温度: -25°C to + 85°C
接触材料: Phosphor bronze
接触镀层: Tin-plating
绝缘材料: PA66 (UL94V-0)
绝缘颜色: White
适用电线: AWG#32
绝缘 O.D.: 0.38mm
包装:1000PCS/盒
交期5天
MOQ 1000 PCS
品牌：溪榜电子

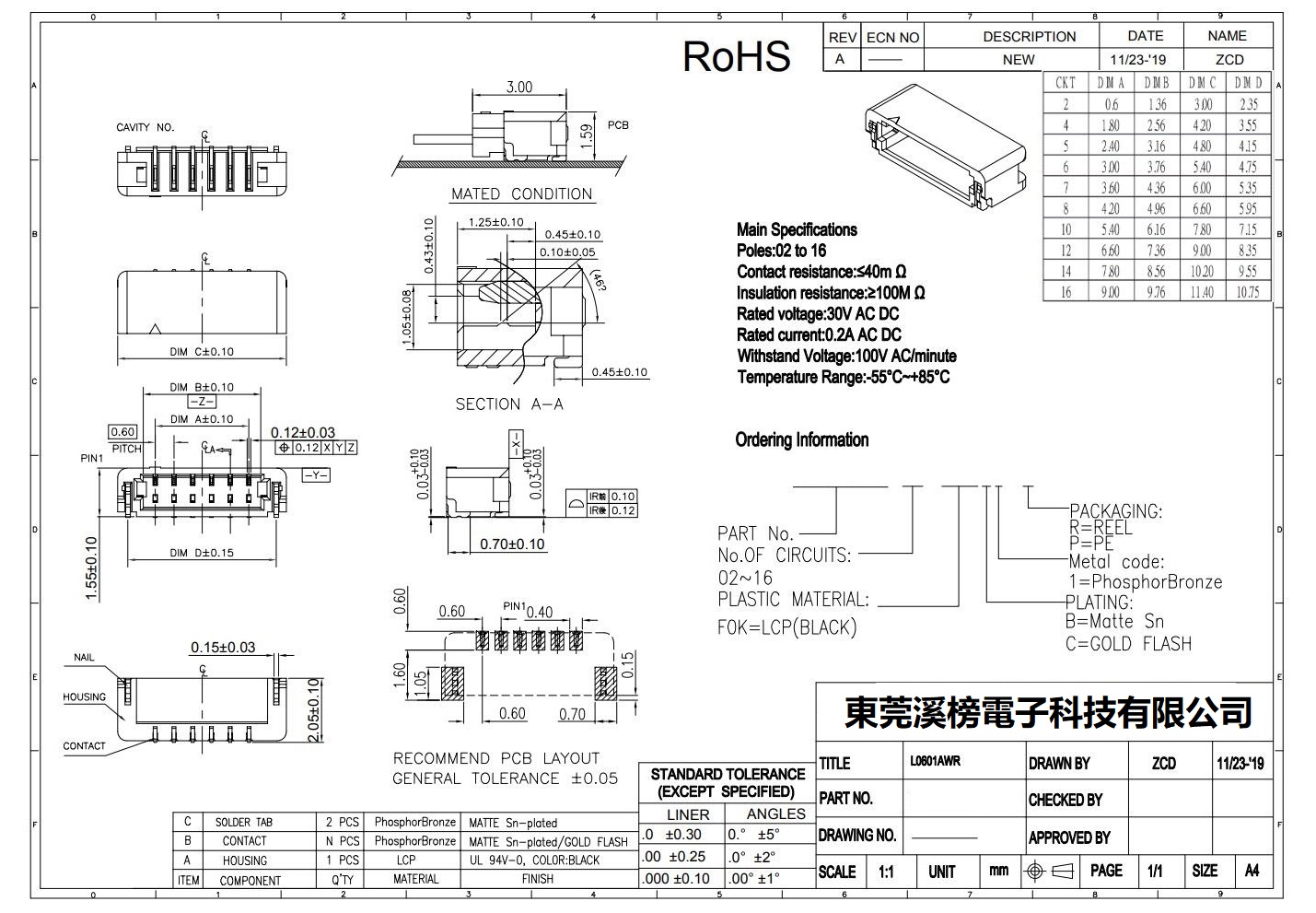

Header connector 0.6 pitch technical indicators:
Rated current: 0.5AMP AC/DC
Rated voltage: 30V AC/DC
Contact Resistance: 20mΩ Max
Withstand voltage: 200V AC/Minute
Insulation resistance: 100mΩ Min
Operating temperature: -25°C to + 85°C
Contact material: Phosphor bronze
Contact Plating: Tin-plating
Insulation material: PA66 (UL94V-0)
Insulation Color: White
Applicable wire: AWG#32
Insulation O.D.: 0.38mm
Packing: 1000PCS/box
Delivery 5 days
MOQ 1000 PCS
Brand: Xibang Electronics
