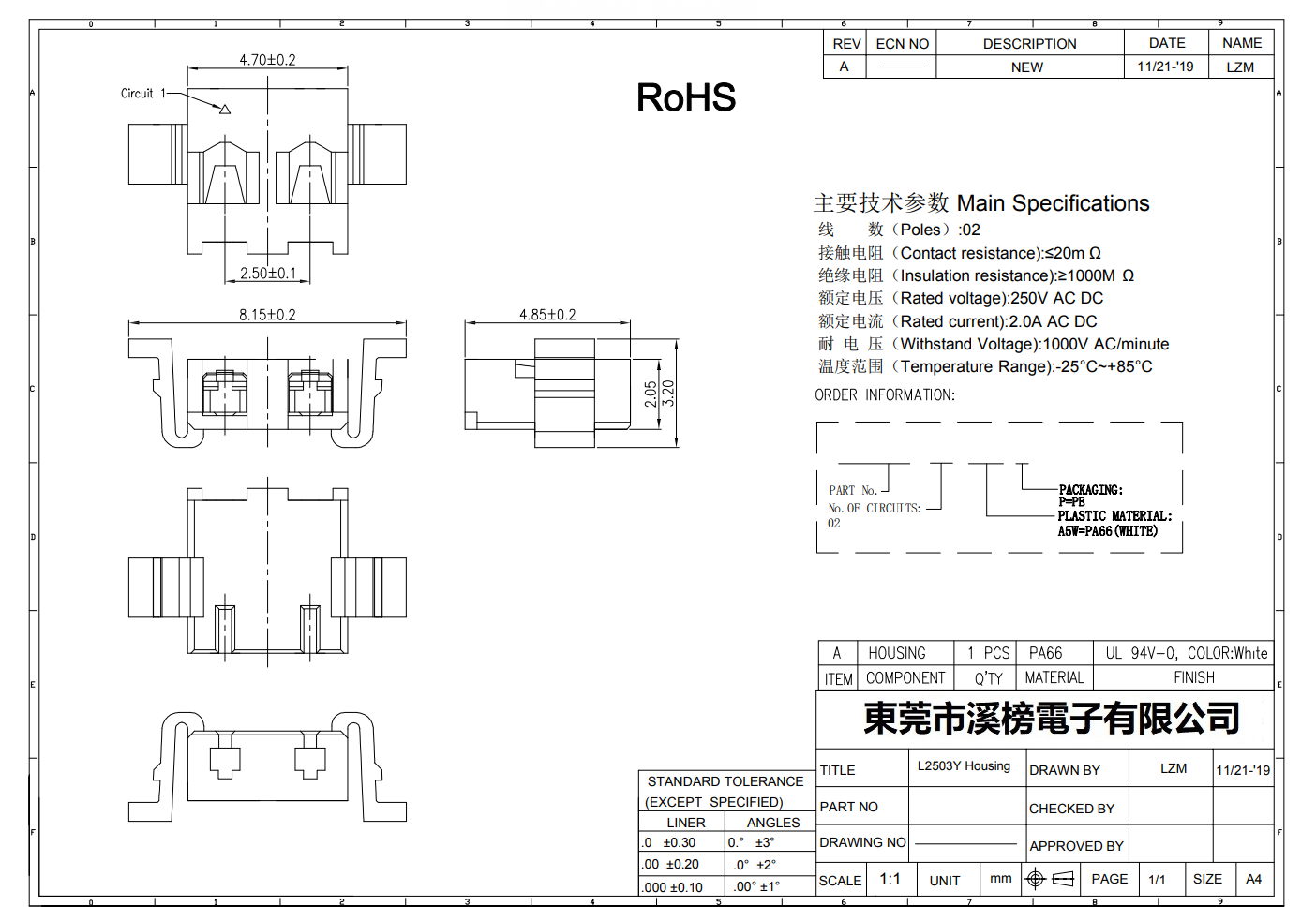

针座2.5间距连接器技术指标
最高点: 2.5mm
位置: 2 to 20 pins
额定电流: 3.0AMP
接触电阻: 20mΩ max
耐电压: 500V AC/minute
绝缘电阻: 500mΩ min
工作温度: -25°C to + 85°C
接触材料: brass
接触镀层: Au or Sn over Ni
绝缘材料: PA66+30%GF
包装:Reel
交货时间:5~15 Day
UL: Yes
符合ROHS
交期5天
品牌：溪榜电子

Socket 2.5 pitch connector technical indicators
Highest point: 2.5mm
Location: 2 to 20 pins
Rated current: 3.0AMP
Contact Resistance: 20mΩ max
Withstand voltage: 500V AC/minute
Insulation resistance: 500mΩ min
Operating temperature: -25°C to + 85°C
Contact material: brass
Contact Plating: Au or Sn over Ni
Insulation material: PA66+30%GF
Packaging:Reel
Delivery time: 5~15 Days
UL: Yes
Compliant with ROHS
Delivery 5 days
Brand: Xibang Electronics
