针座4.2间距连接器技术指标
额定电流: 9.0A
接触电阻: 10mΩ max
耐电压: 1500V AC/minute
绝缘电阻: 1000mΩ min
工作温度: -25 to + 85°C
接触材料: brass
接触镀层: Au or Sn over Ni
绝缘材料: LCP, NY6T, NY9T, PA66 + 30%GF
包装:Reel
交货时间:5~15 Day
UL: Yes
符合ROHS
交期5天
品牌：溪榜电子

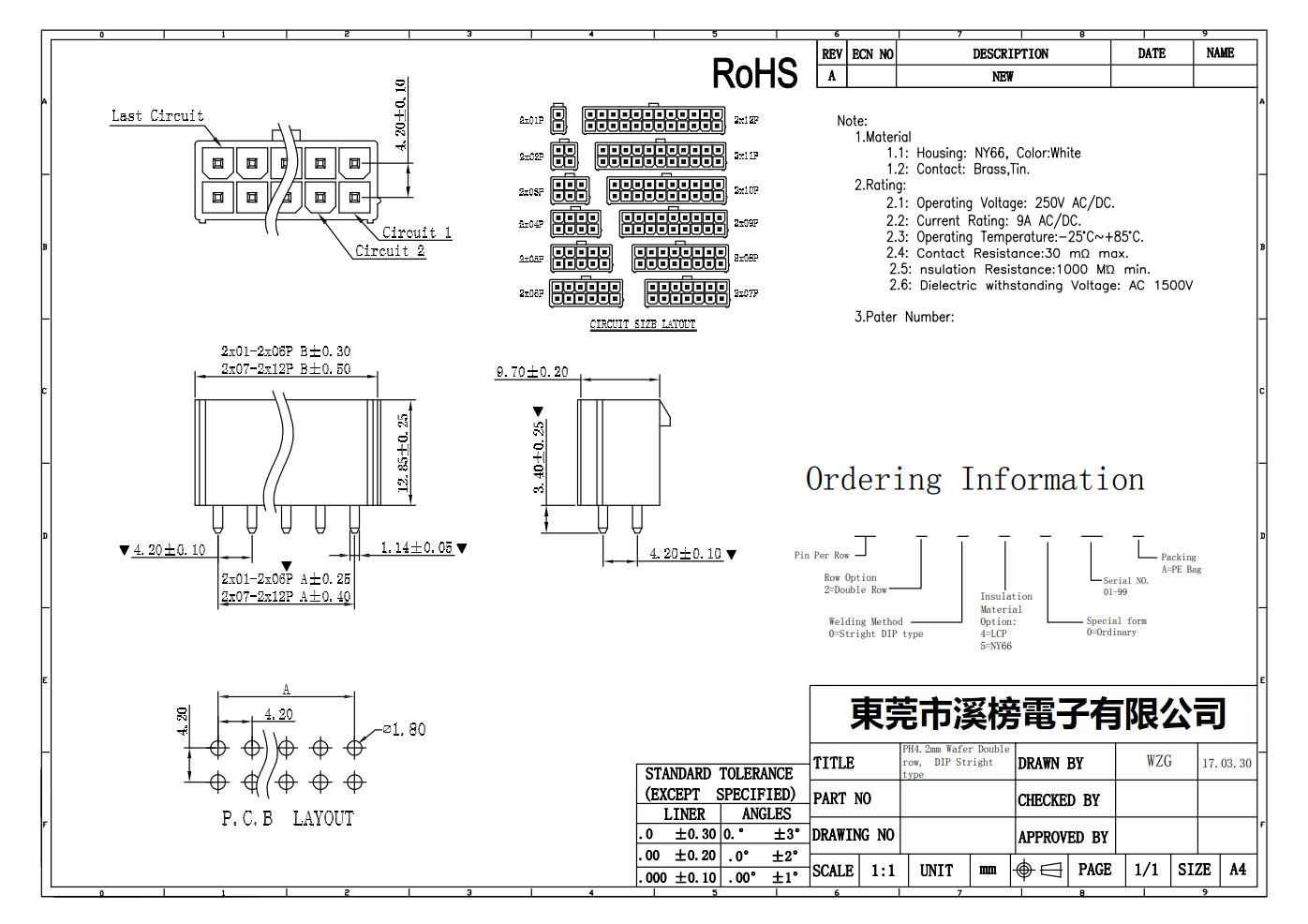

Header 4.2 pitch connector technical indicators
Rated current: 9.0A
Contact Resistance: 10mΩ max
Withstand voltage: 1500V AC/minute
Insulation resistance: 1000mΩ min
Operating temperature: -25 to + 85°C
Contact material: brass
Contact Plating: Au or Sn over Ni
Insulation material: LCP, NY6T, NY9T, PA66 + 30%GF
Packaging:Reel
Delivery time: 5~15 Days
UL: Yes
Compliant with ROHS
Delivery 5 days
Brand: Xibang Electronics
