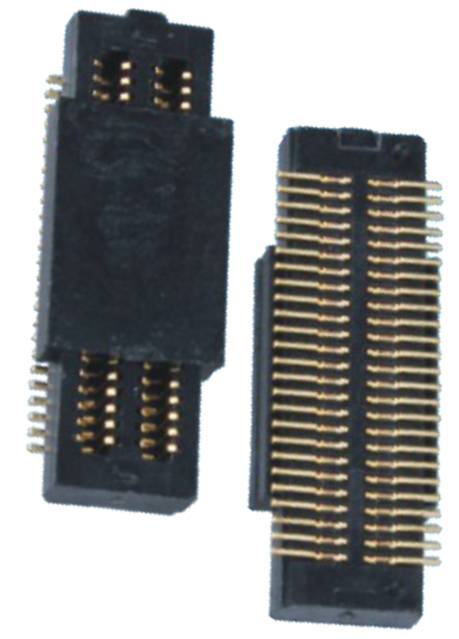

BTB板对板连接器技术参数
BTB软排线插座连接器间距分为0.4mm  0.5mm  0.8mm
BTB插座PIN数：4-60
电镀：T=镀锡
装置风格有：抽屉式，翻盖式、 抽拉式、拉拔式、 掀盖式、前掀盖式、前压、后压、下接、上接SMT式
工作电压:30V AC
额定电流:0.3A 0. DC
工作温度: -25℃~+85℃(Including terminal temperature rise)
耐压:250Vrms
触点材料: 磷青铜
绝缘材料:LCP
适用的BTB厚度:T=0.3±0.03mm
包装：卷装连接器
品牌：溪榜电子

BTB board-to-board connector technical parameters
BTB flexible cable socket connector spacing is divided into 0.4mm 0.5mm 0.8mm
BTB socket PIN number: 4-60
Plating: T = Tin plating
Device styles are: drawer type, clamshell type, pull-out type, pull-out type, flip-up type, front flip-up type, front pressure, rear pressure, lower connection, upper connection SMT type
Working voltage: 30V AC
Rated current: 0.3A 0. DC
Working temperature: -25℃~+85℃(Including terminal temperature rise)
Withstand voltage: 250Vrms
Contact Material: Phosphor Bronze
Insulation material: LCP
Applicable BTB thickness: T=0.3±0.03mm
Packaging: Reel Connector
Brand: Xibang Electronics

1. Narrow spacing, type design, to meet the design requirements of short and thin products.
2. The retention is comparable to that of the matching BTB.
3. It adopts bilateral output PIN, and the unilateral PIN pin spacing is 0.5mm, which is more convenient to operate.
4. Has no effect on the circuit design in the area directly below the plastic body of the connector.
5. The length of the bilateral PIN pins is up to 0.65mm, which can ensure sufficient bonding force with the PCB and the convenience of operation.
6. Comply with ROHS directive and HF (Halogen Free) requirements.
7. Mainly used in MP, DSC, PDA, GPS, DPF and other consumer electronic products.
8. Specific application: the connection between LCM, CCM, WI-FI, BT and other modules and the MB or the connection between PCB and PCB
